FM Broadcast Analyzer

Professional FM transmitter measurements with an affordable RTL-SDR dongle

See at a glance whether an FM transmitter stays within the rules: deviation, pilot, RDS, MPX power, spectrum mask and harmonics. With automatic PDF test reports based on the standards regulators use.

Want to be notified when this product launches? Just send us an e-mail. info@broadcastinnovations.nl

FM Broadcast Analyzer

Features

MPX & deviationPeak deviation, pilot and RDS injection, MPX power (ITU-R BS.412), overshoot counter.
Deviation statisticsHistogram, cumulative distribution and CEPT/ERC REC 54-01 values (M, D, S, %, K).
Spectrum & maskRF and MPX spectrum, spectrum mask according to ETSI EN 302 018-2.
RDS decoderPS, PI, PTY, RadioText, RT+, AF, EON, clock, group statistics and RT history.
AudioL/R levels, loudness (EBU R128), stereo quality monitor (XY/goniometer) and stereo rose.
Harmonics & scanHarmonics 2f–4f and a band scan with the station name at every peak.
Test reportsPDF report with PASS/FAIL per item, RDS data and graphs.
EasyThe installer sets up the dongle driver automatically.

Screenshots

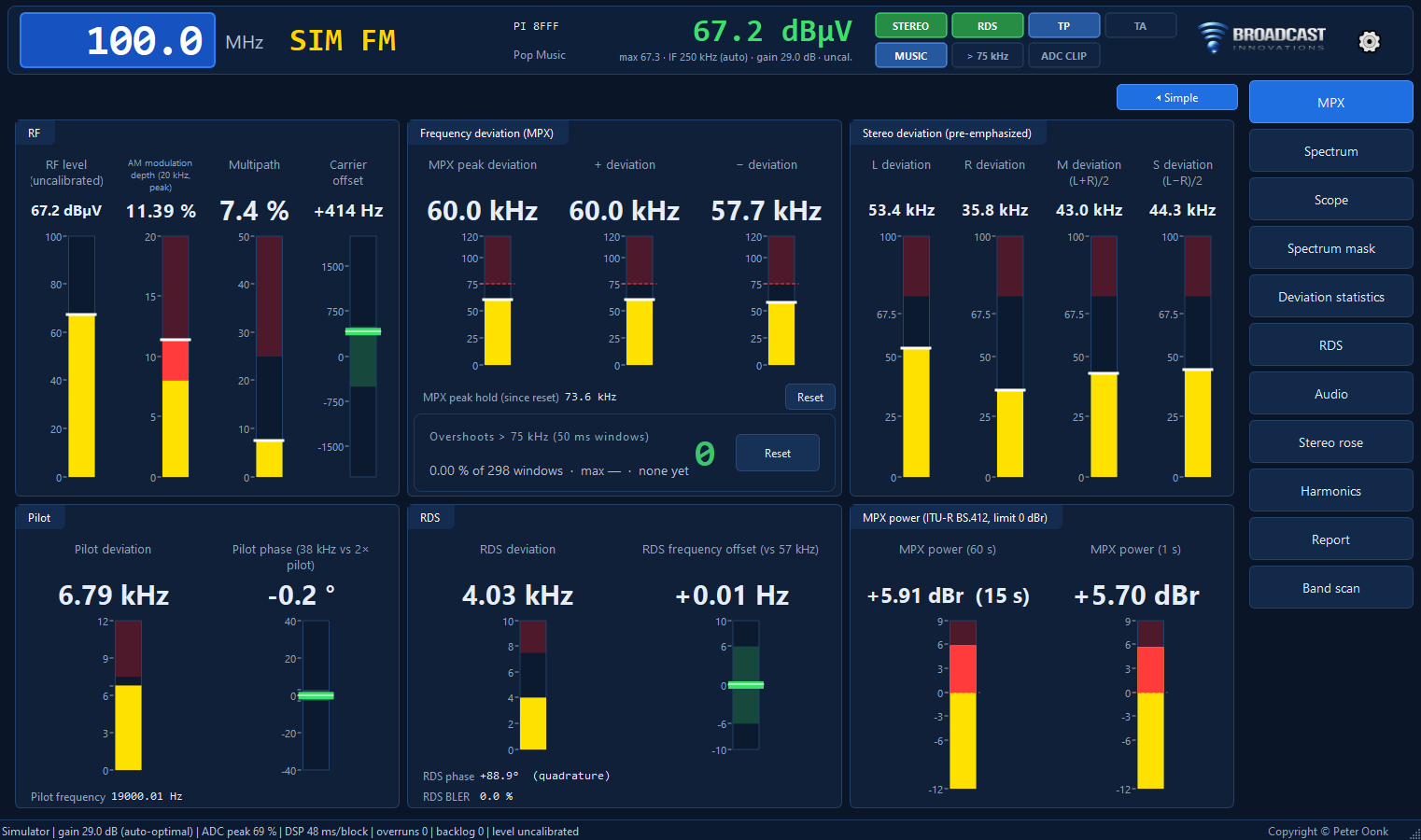

MPX meters (expert view)
MPX meters (expert view)

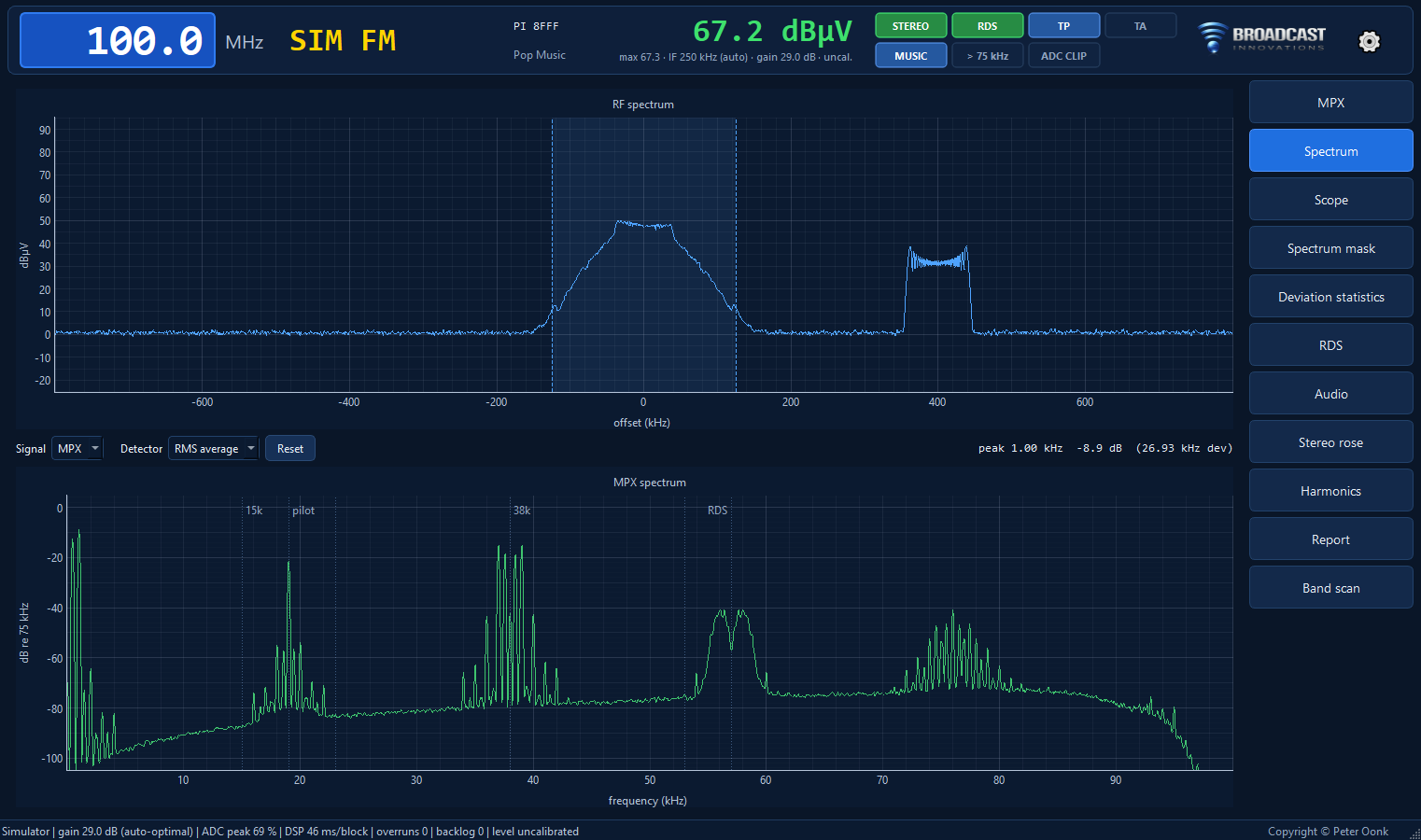

RF and MPX spectrum
RF and MPX spectrum

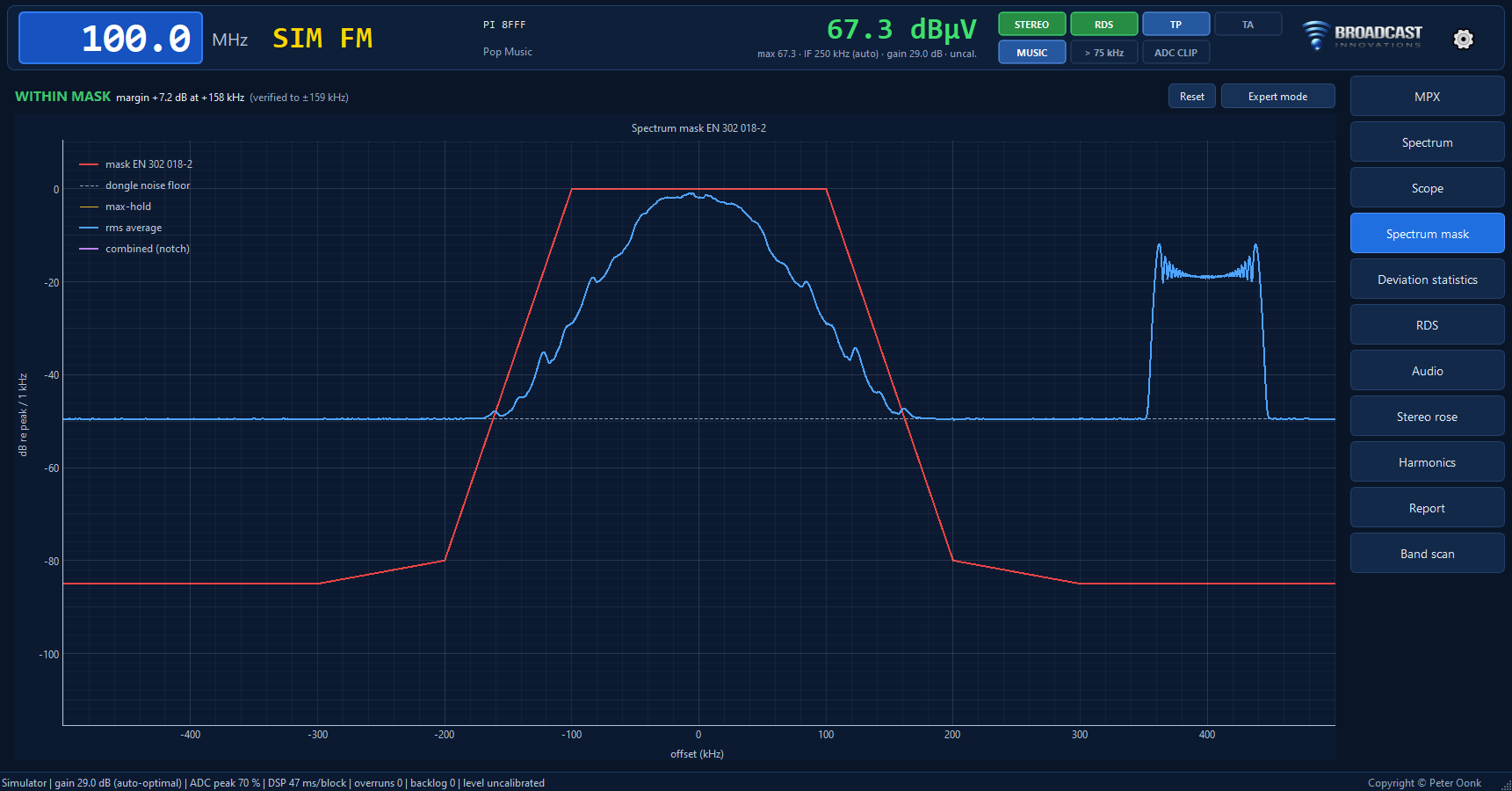

Spectrum mask ETSI EN 302 018-2
Spectrum mask ETSI EN 302 018-2

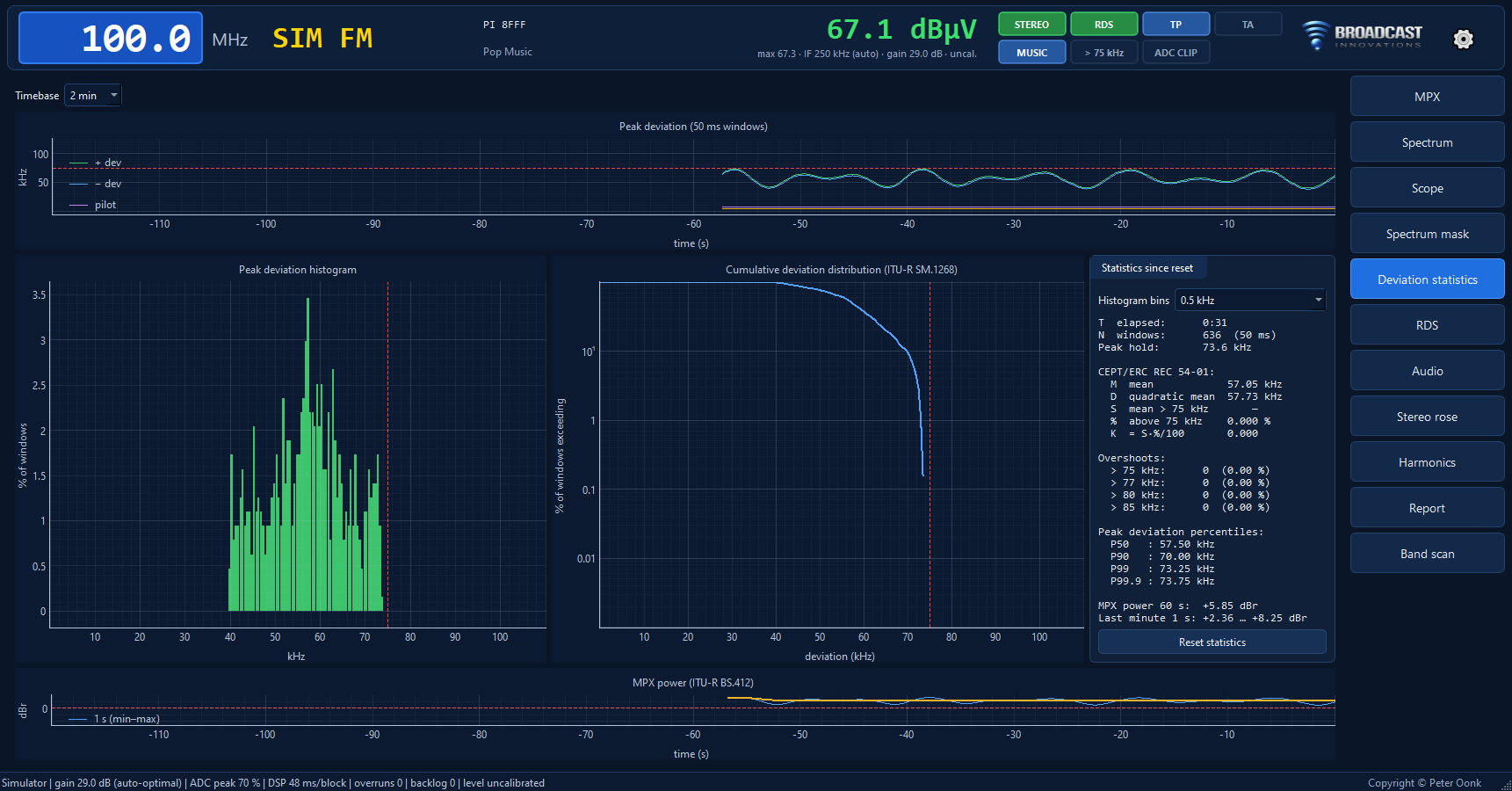

Deviation statistics ITU-R SM.1268
Deviation statistics ITU-R SM.1268

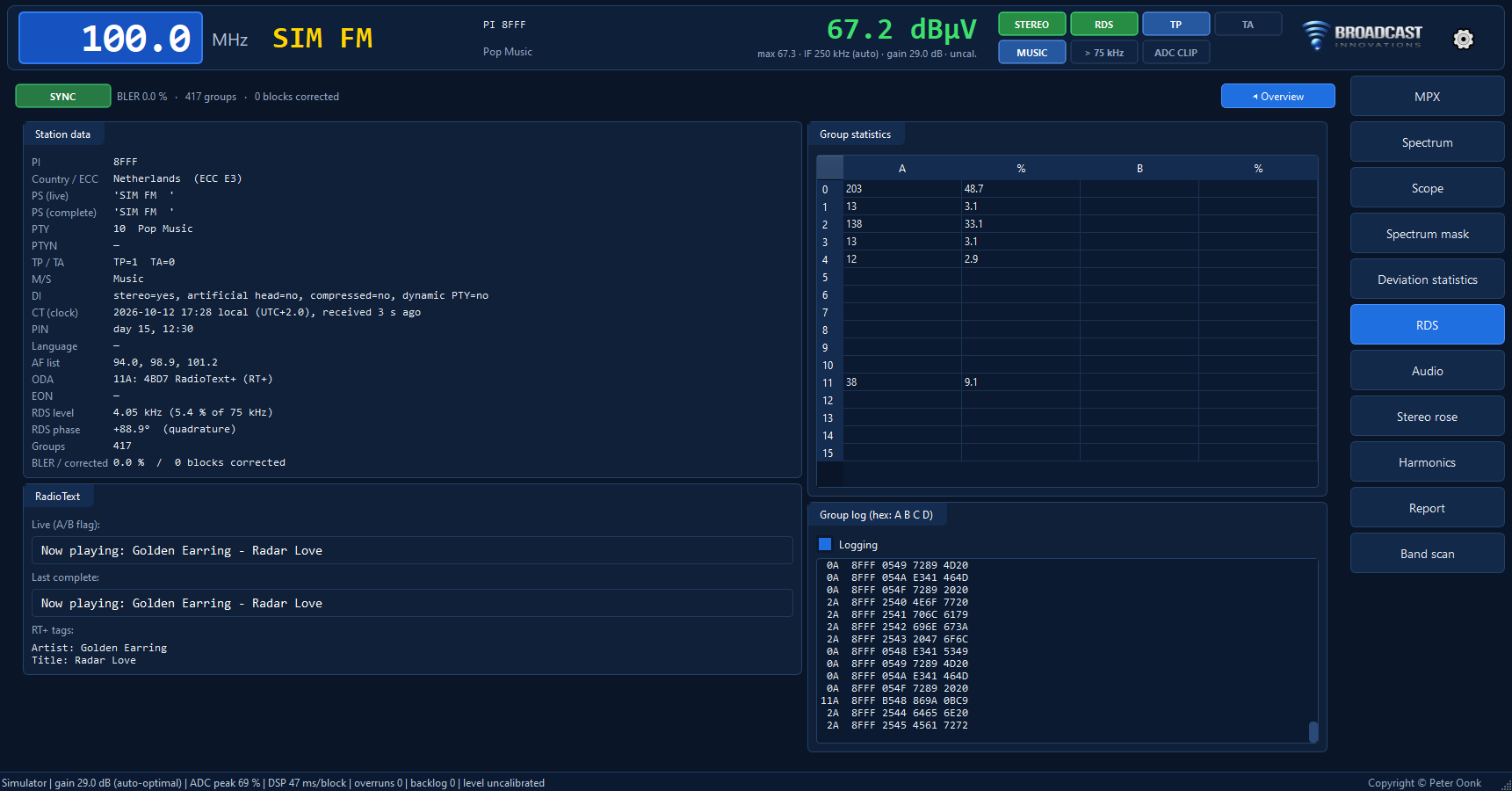

Full RDS decoder
Full RDS decoder

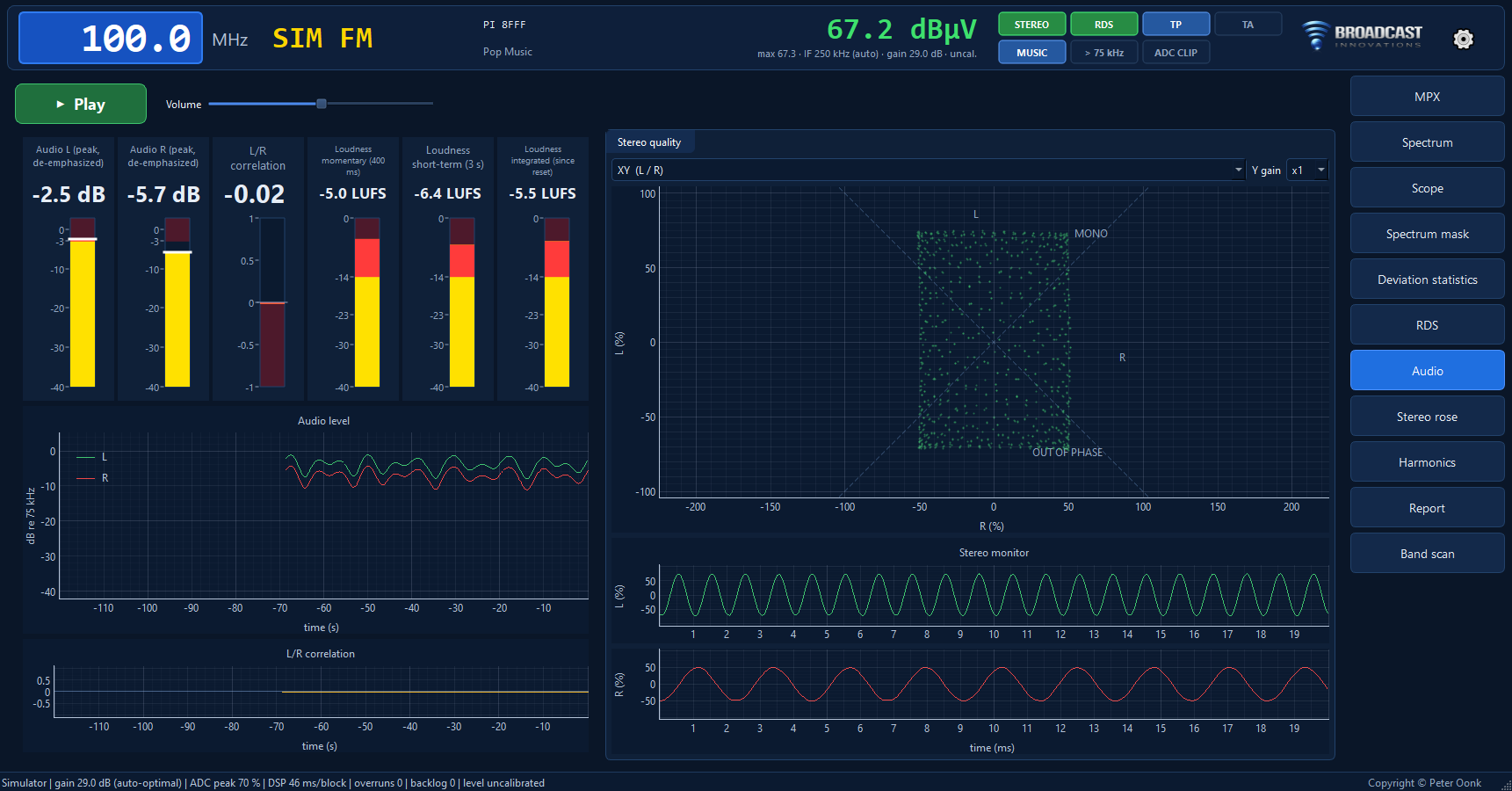

Audio, loudness and stereo quality monitor
Audio, loudness and stereo quality monitor

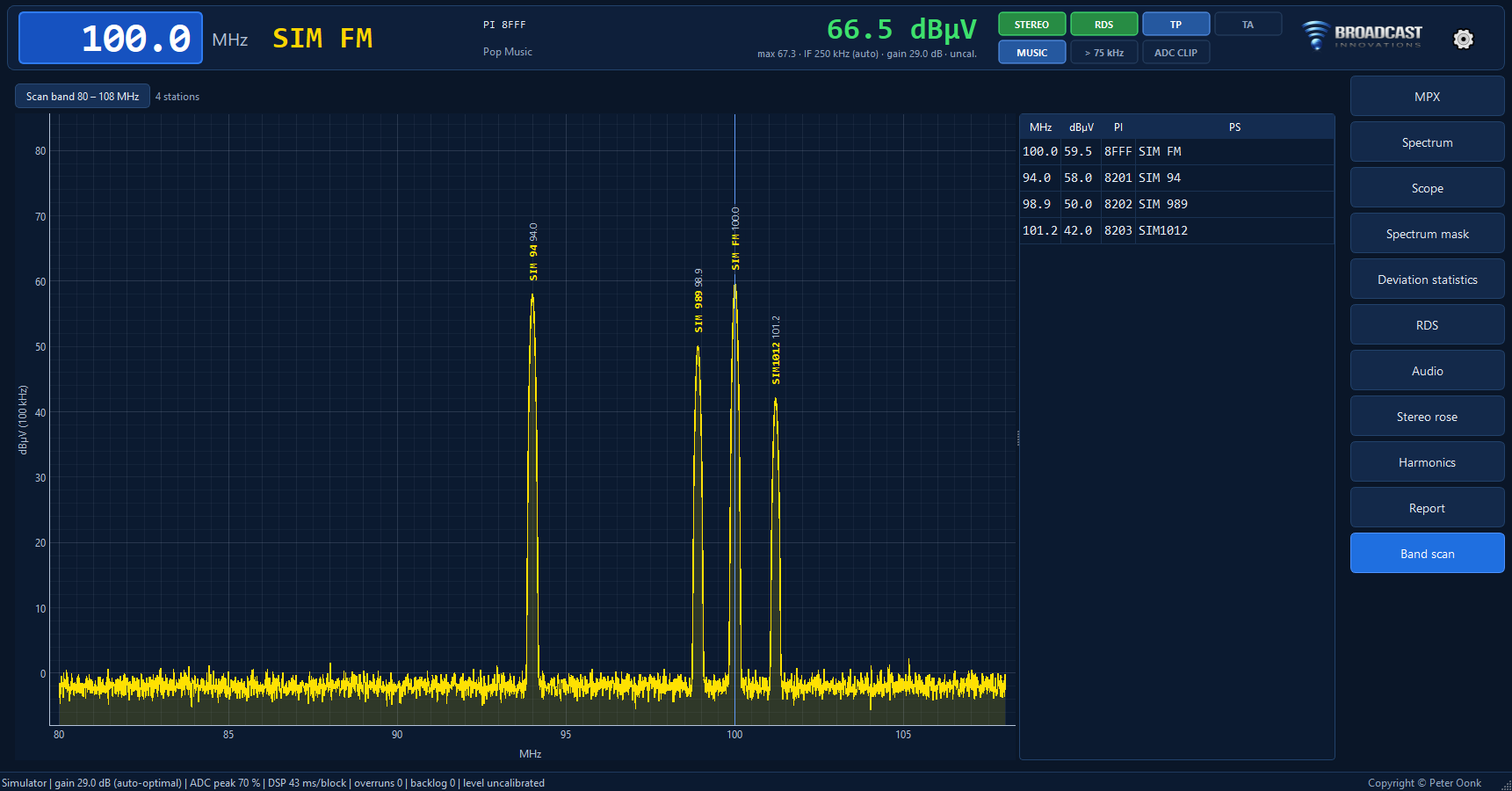

Band scan with station names
Band scan with station names

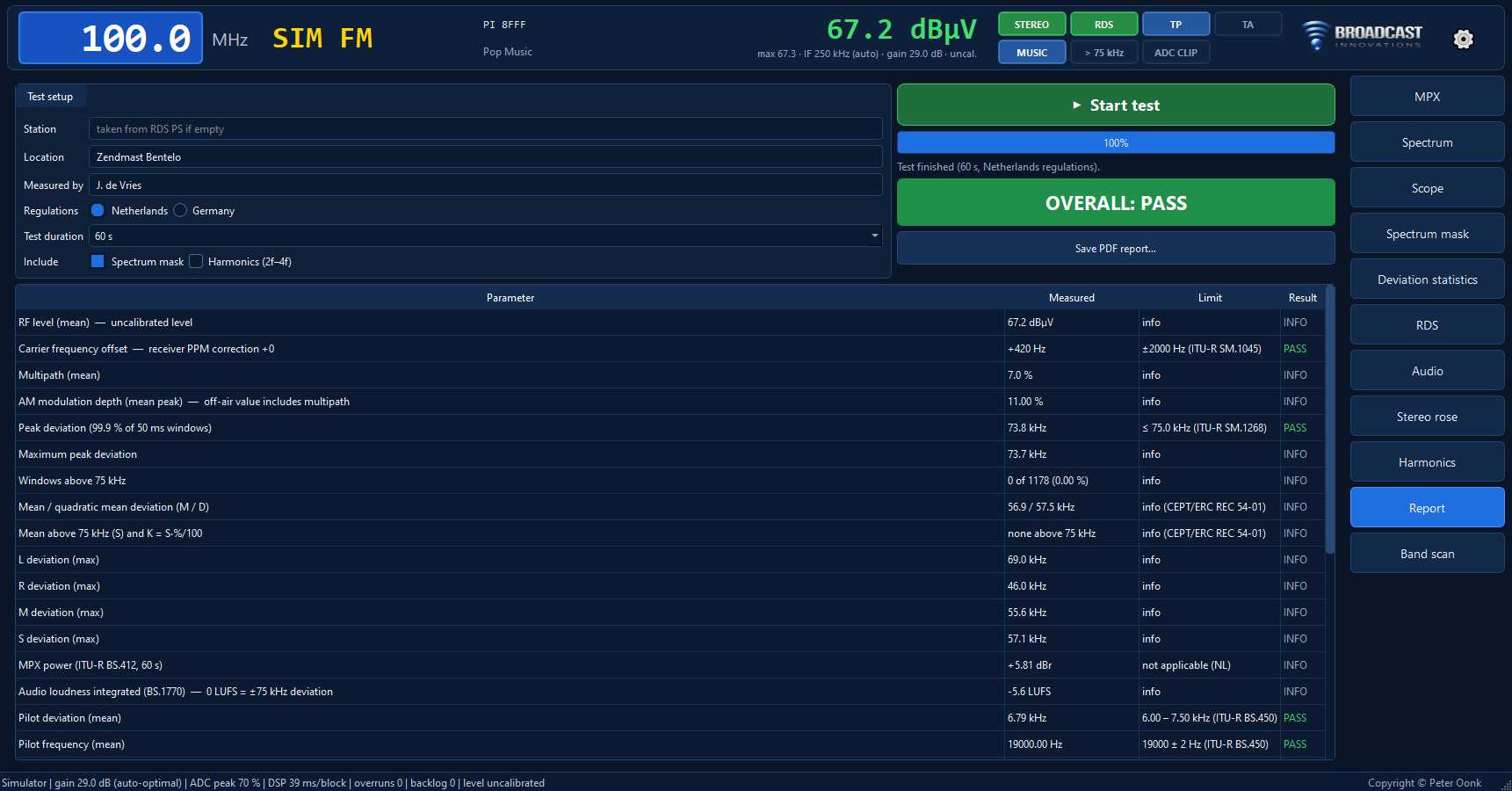

Test report with PASS/FAIL
Test report with PASS/FAIL
